EVICA EP20+ Gobo Projector IP65 6500k Outdoor & Indoor


EVICA EP20+ Gobo Projector IP65 6500k Outdoor & Indoor

The NEW outdoor Ep20+ Gobo projector is from our NEW Ep+ projector range. The most durable  projectors on the market have been upgraded and remodelled to IP65 rating meaning they can be used indoors and outdoors. Also in dusty environments such as busy warehouses etc. They have a marked improvement in performance on the old range, including uprated Lumens for a much brighter image from a much more efficient LED. This puts our specs on par with the best in the business at a better price. The modular lenses that can be shared across all models including the EP20+, EP40+ and EP80+ giving greater flexibility to multiple projector owners. Please check out our new specs below.

Please choose your dimming options and lens. If you require 3000k,5600k, Dali or DMX options or very specific fitting options please message HERE and we'll get straight back to you.

£0.00 ex. VAT
£0.00 inc. VAT
£575.00 ex. VAT
£690.00 inc. VAT
reward points

Lens OptionsPower Drive

  • Additional Information

    Cooling    Convection

    Noise dBA    0

    IP rating    IP65

    Operating Temperature Degrees C    -20 to +40

    Light Source    Fidelity 20W

    LED Luminous Flux (Lm)  2012 Lm

    CCT    6500K

    CRI     80

    Luminaire Supply Voltage (Vdc)    30

    Luminaire supply current (mA)    700

    Input Power    20w

    Recommended IP67 Drive module (fixed voltage)    XLG-20-H

    Recommended IP67 Drive module (0-10V dim for 100k pot)    XLG-20-H-B

    Lamp housing material    Aluminium

    Lamp housing finish (standard)    Anodised

    Lamp housing finish (special order)    RAL Powder coated

    Weight (Kg)    1.3

    Gobo    Size E 37.5mm (active 24mm)

    Mounting Yoke hole    13mm

    Objective Lens assemblies    N(85mmfl)/M(60mmfl)/W(50mmfl)

    Image Angle (Narrow lens) degrees    14.0º

    Image Angle (Medium lens) degrees    20.1º

    Image Angle (Wide lens) degrees    23.4º


    Cowl    C1

    Integrated Drive Mounting plate    XLG-BRACKET


    Versatile indoor/outdoor gobo, if you are looking for a projector that can be used outdoor or indoors, has great build quality and output, the EP20 is the ideal choice.

    The EP20’s rugged build quality and IP65 rated waterproof status make it the ideal choice for a multitude of end use.

    It’s 20w output produces a stunning 850 Lumen with accurate colour reproduction.

    The 98 CRI Gallery White LED provides optimum colour rendering

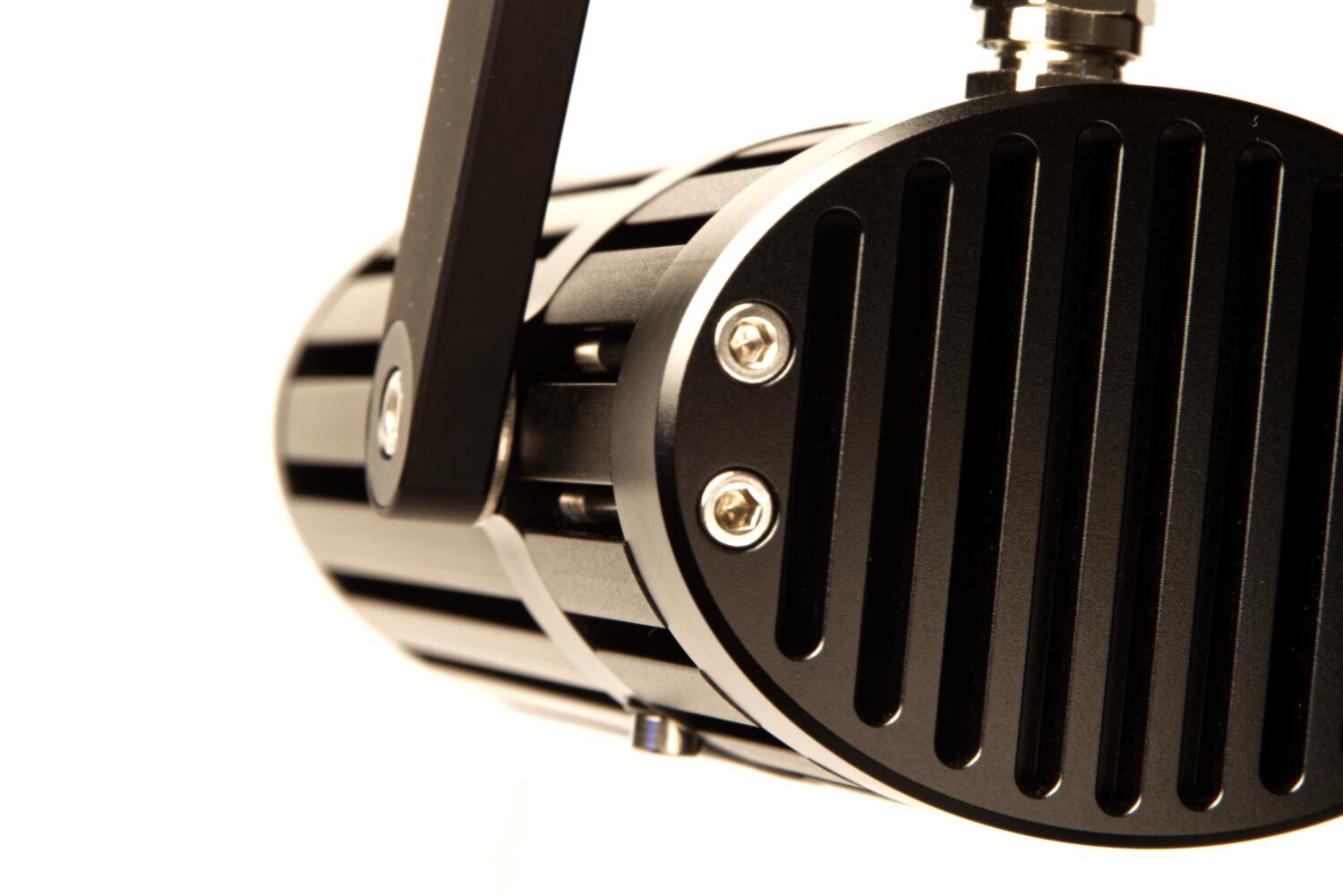

    Evica EP20 20W Convection Cooled Effects Projection System. Constructed from machined aluminium and with a satin anodised finish, the laser etched robust and contemporary in design.

    Using a unique, magnetic, gobo holding cassette, you can change the image in seconds.

    The supplied locking mounting bracket gives 360 degrees rotation and 180 degrees tilt enabling you to position the fitting in the most awkward of places.

    EP20 uses the most up to date LED technology, rewarding you with the highest efficiency, zero IR, zero UV and 90% lumen maintenance at 65,000 hours of operation. These units will provide you with a maintenance free image that can be relied upon.

    The six-element optical system, with multi-layer anti-reflection coatings, maintains extremely high efficiency and provides a pin sharp edge to edge image. The lens tube has a locking screw which restricts tampering.

  • Downloadable Technical Files

    EP80+ Technical Specs PDFEP+ Range Instructions PDF

  • Great Use Cases

    Inside or outside retail shops, bars, restaurants special promotions,

    Live music, other occasions

    Event exhibition stands

    Museums, galleries and visitor centres


    Rear projection signage

    Information signage

    Showrooms (car, bike, kitchen etc)


    And many other opportunities

  • In The Box

    The projector

    Choice of lens

    240v power supply

    Gobo cassette

    Hex wrench
